WARNING!
THIS IS A FACTORY RESET OF YOUR SPEAKERS. ALL CUSTOMIZATION, INCLUDING WI-FI NETWORK CONFIGURATION, FILE SHARES, AND SAVED PLAYLISTS, WILL BE LOST. YOU WILL HAVE TO RE-CREATE THESE ONCE THE FACTORY RESET IS COMPLETE. WE RECOMMEND THIS PROCESS ONLY IF YOUR SPEAKERS ARE NOT FUNCTIONING AND AN INTERNET FIRMWARE UPGRADE HAS FAILED. FOR ANY QUESTIONS OR CONCERNS, CONTACT AN AUTHORISED PSBSpeaker CUSTOMER REPRESENTATIVE BEFORE PROCEEDING.
Before proceeding with the factory reset, backup playlists.
To factory reset the iQ Series Speakers, perform the following steps:

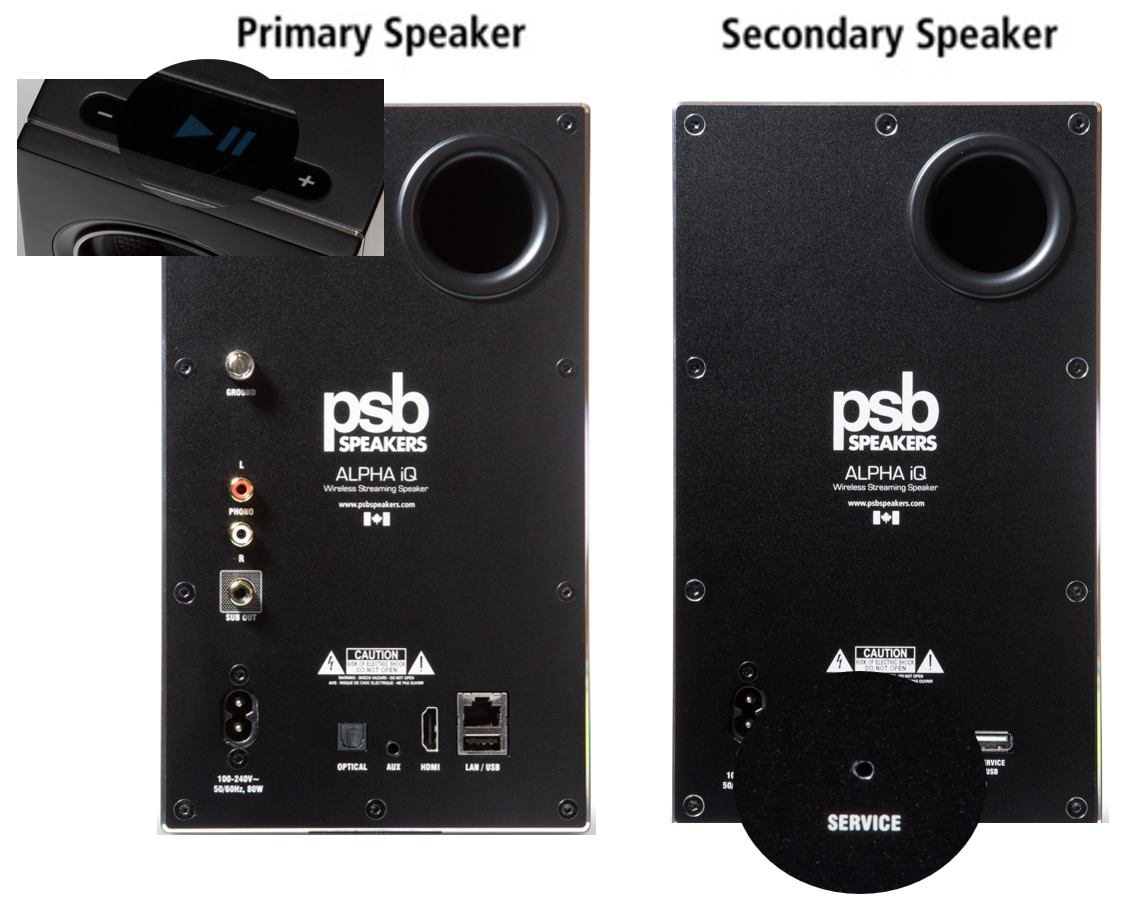

Primary Speaker
- Disconnect the primary Speaker from the electrical power outlet and wait for 10 seconds.
(If applicable, disconnect the Ethernet cable to the primary Speaker's LAN port.) - Reconnect the primary Speaker to the electrical power outlet.
- Once the status indicator LED turns Red, immediately pressa) and hold the PLAY/PAUSE button. The LED immediately turns Green and then Red. Continue holding* the PLAY/PAUSE button for 30 seconds.
Note: a)Keep your finger upright while pressing the PLAY/PAUSE button to ensure direct contact. - After 30 seconds, when the primary Speaker's Status Indicator LED blinks Red, release the PLAY/PAUSE button.
- The Status Indicator LED of the primary Speaker turns solid Green, indicating the primary Speaker is in Hotspot Mode.
Secondary Speaker
- Disconnect the Secondary Speaker from mains power outlet. Position a tool with pointed tip (for example, paper clip) to reach and contact the SERVICE tact switch – do not touch the SERVICE tact switch with the tool yet.
- Wait for 30 seconds and then reconnect the power.
- As soon as the Status Indicator LED turns Red, press and hold the SERVICE tact switch with the pointed tip of the tool. The Status Indicator LED will immediately turn Green and then back to Red - continue to hold for 30 seconds the SERVICE tact switch with the pointed tip of the tool.
- After 30 seconds, the Status Indicator LED will begin to blink red – release hold of SERVICE tact switch.
- The Status Indicator will turn solid Green. This indicates that the factory reset of the Secondary Speaker is completed and is now at Hotspot mode ready to be configured and paired.
All customization to iQ Series Speaker is removed and restored to factory settings.
*IMPORTANT - Releasing the PLAY/PAUSE or SERVICE button before the LED blinks Red cancels the factory reset and freezes the Speaker in Upgrade Mode. You should restart the procedure to factory reset the Speakers.
